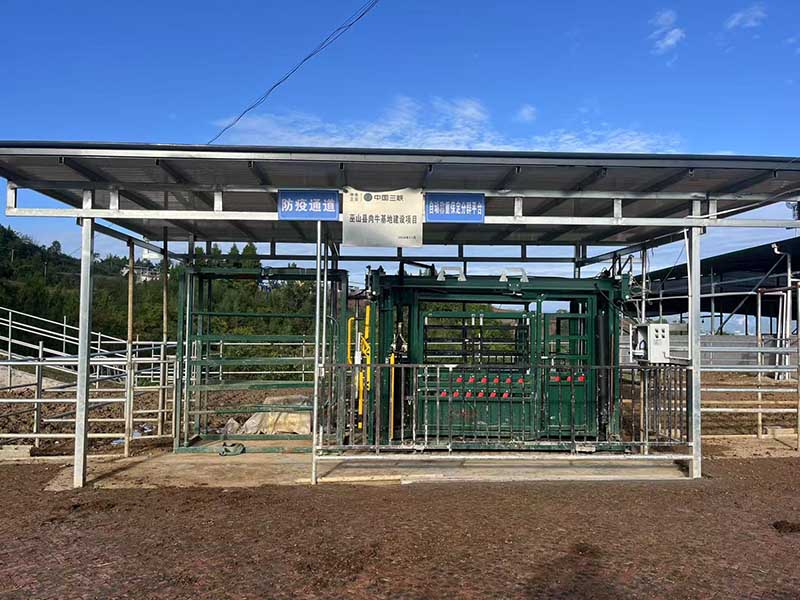

Hydraulic Chutes For Cattle

Implement functions

With the assistance of auxiliary equipment (S-shaped cattle driving channel, revolving door), cattle can queue up in an orderly manner and be used for give potion, shoulder injection, pregnancy examination, health examination, body size measurement, surgery, ear labeling, vaccine injection, blood collection, mouth examination, semen transfusion, pregnancy measurement, back fat measurement, limb and hoof examination, treatment, and other work.

The placement of the hydraulic system creates an easy working area. You can stand in one place to easily and efficiently operate the tailgate, head gate, and squeeze function.

This chute gives you an all access pass for working your livestock. With one hand you can brand, vaccinate, and even deworm. And, removable panels at the bottom make access to the lower half of your cattle safe and quick.

Characteristics

Thickened materials, humanized design, fully ensuring human and animal safety, strong operational functionality, flexibility, speed, and convenience.

It can be matched with a dedicated electronic weighing system and electronic code reading equipment.



The device is equipped with a front clamp door, operated by an upper veterinarian, a rear closed door, a lower veterinarian area, a gear lever area that can be inserted, and a rear closed door push pull operating handle for controlling the rear door switch, which is convenient and flexible.

Special pressure bearings can fully and flexibly operate the collet door, reduce noise, and prevent cows from being affected by noise.

The device has a squeezing function on both sides, and the squeezing method is parallel squeezing, which adjusts the width according to the size of the cow.

Technical parameters

1. Main structure: carbon steel sprayed with plastic, square tube wall thickness 2.5mm

2. Dimensions (length, width, height): L3500mm*B800mm*H2400mm

3. Driving mode: hydraulic drive

4. Voltage standard: one-way 50Hz 220V/380V

5. The range of movement of the hydraulic operating rod: with the top axis of the Baoding frame as the center, the operating remote control rod can rotate about 260°

6. Operating lever function: Three operating remote sensors control the exit door of the Baoding rack (clamping the cow's neck) and both sides of the exit door (clamping the cow's neck) (squeezing the cow's belly to expand and contract) respectively.

7. Accommodation range: can meet the Baoding needs of any cattle of different weights from 200KG to 1500KG

8. Fixed part: head, neck, body/retreat (stop retreat)

9. Movable windows on both sides: There are large opening and closing inspection doors and entrances with independent up and down positions on the left and right sides.

10. Temperature: adapted to low temperature and low pressure environment, the whole machine operates normally at -35℃

11. Protection level: IP67

12. Working environment: Working temperature -25～+45℃; Storage temperature -25～+45℃

13. Auxiliary equipment (optional): S-curved cattle channel, revolving door
