Chemical Liquid Weighing System

Description

Chemical Liquid Weighing System is a high-precision industrial automation solution for gravimetric (weight-based) measurement, batching, and dispensing of chemical liquids. It replaces volume-based methods (e.g., flow meters) to achieve superior accuracy, especially for corrosive, viscous, or temperature-sensitive chemicals.

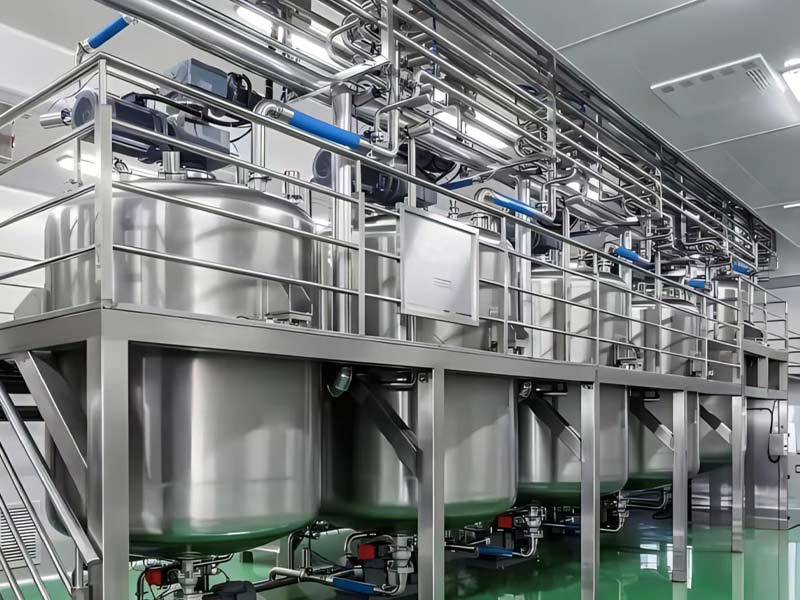

An automatic batching system for small quantities of chemical liquids. It is applicable to the main materials (chemical liquids), and the overall framework is made of 304 stainless steel. We have rich experience in designing and constructing liquid batching systems. The number of materials can reach 20 types.

The liquid automatic weighing and batching system is a liquid automatic weighing and batching control system which integrates computer production process control and data management, such as weighing and feeding, formula control and discharging. It is necessary to achieve stable and reliable operation, simple and applicable operation and superior cost performance.

Product features

Control cabinet

1. Adopt industrial touch screen

2. Dustproof and waterproof

3. Simple interface operation

4. Easy to learn

Alkali injection diaphragm pump

1. Idling allowed

2. Preservative

3. Low energy consumption

Transportation method:

For liquids with low viscosity, they can be transported by pumping or through gravity flow.

For liquids with high viscosity, a gear pump is used.

For pastes, a cam pump is employed.

Transportation measurement accuracy:

The single liquid delivery volume ranges from 1 kilogram to 30 kilograms, with an accuracy of 15 grams.

Measurement and add materials method:

Use a C6 high-precision electronic scale to weigh the materials. The cumulative measurement of the materials is carried out using the subtraction method.The add accuracy is high, the add quantity is large, the speed is fast, and the materials can be injected into the reaction vessel simultaneously.

Intelligent control:

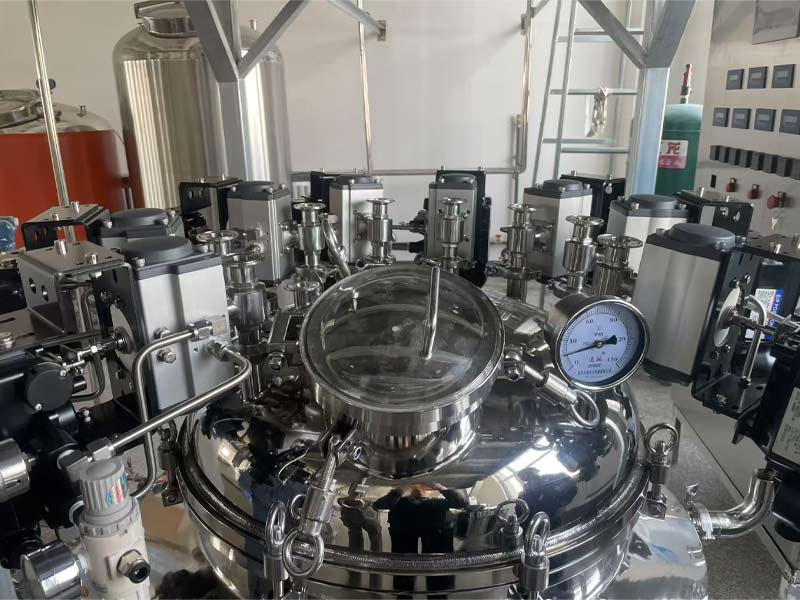

On the touch screen of the control system, input the frequently used formula. When in use, retrieve the corresponding formula, press the confirm button, and the system will start with one click. The system will start, and all materials will correspond to the regulating valves, which will be opened at the same time. The materials will start to be injected into the reaction kettle at the same time. Under the monitoring of the control system and electronic scale, the regulating valves will automatically close when the materials are injected. The measurement accuracy should reach one thousandth. Realize automated production, data can be traced! Upload the enterprise management system; Welcome users to the factory for technical exchange

Additional functions: mixing, heating, temperature measurement,+homogenizer and other functions
