Food Liquid Weighing System

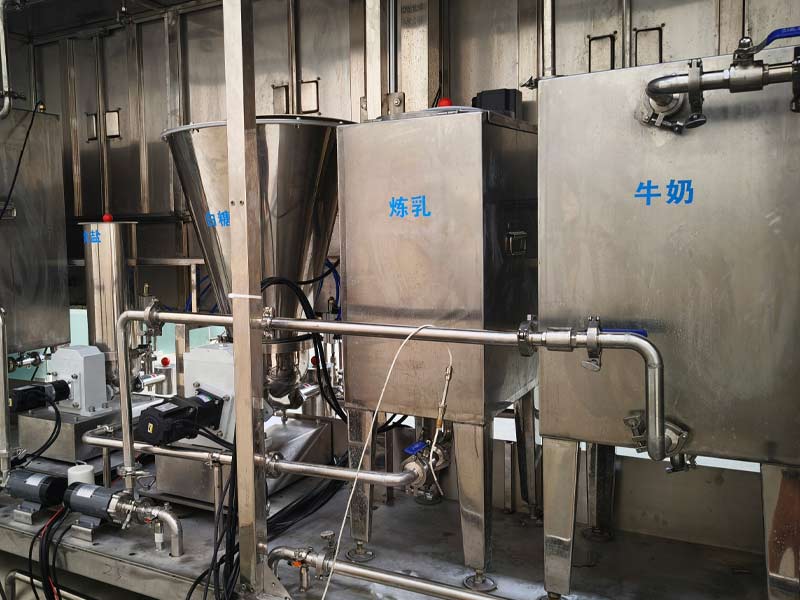

Liquid small material automatic batching system, suitable for main materials (liquid, powder, paste), including edible oil, condensed milk, egg liquid, white sugar, salt, etc. The overall frame is made of 304 stainless steel material and comes into contact with food (tank body, pipeline valve material 316L).
We're here to help: Easy ways to get the answers you need!
Liquid small material automatic batching system, suitable for main materials (liquid, powder, paste), including edible oil, condensed milk, egg liquid, white sugar, salt, etc. The overall frame is made of 304 stainless steel material and comes into contact with food (tank body, pipeline valve material 316L).
Transportation method:
Low viscosity liquids can be pumped or self flowing
High viscosity value, using gear pump or cam pump for liquid
The paste adopts gear pump or cam pump
The powder is transported by spiral conveyor
Conveying measurement accuracy:
Liquid single delivery quantity of 50 grams to 10 kilograms, with an accuracy of 5 grams
Salt or sugar, spiral conveying accuracy of 0.1 grams
Measurement and add meterials method:
Use C6 high-precision electronic scale to weigh materials, and use addition to accumulate and measure materials. The add accuracy is high and less affected by external interference factors.
Intelligent control:

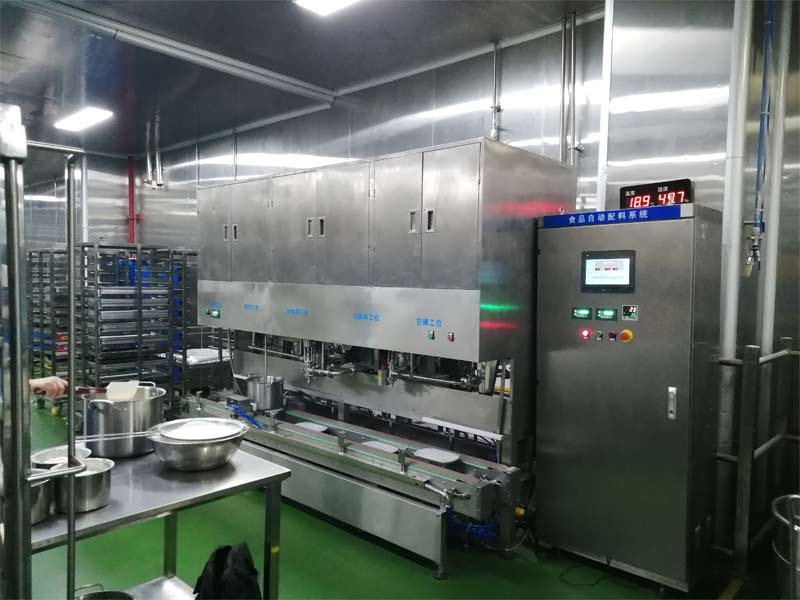

On the touch screen of the control system, input the frequently used formula. When in use, retrieve the corresponding formula, press the confirm button, and the system will start with one click. Manually place the material bucket on the conveyor line, and the system will start. The conveyor will drive the material bucket and enter the add station. The material bucket will trigger the add valve, open the valve, and the liquid will automatically flow into the material bucket. The system can automatically add materials to the material bucket in sequence, with fast speed, consistent batch feeding quantity, and measuring accuracy of one in three thousand. Realize automated production, data can be traced! Upload the enterprise management system; Welcome users to the factory for technical exchange.
Additional functions: mixing, heating, temperature measurement, etc
Please send us your request and we will reply to you within 24 hours.
Reach out to us anytime and we'll happily answer your questions.
Tel
+8613253500563
Chemical Liquid Weighing System is a high-precision industrial automation solution for gravimetric (weight-based) measurement, batching, and dispensing of chemical liquids. It replaces volume-based methods (e.g., flow meters) to achieve superior accuracy, especially for corrosive, viscous, or temperature-sensitive chemicals.
An automatic batching system for small quantities of chemical liquids. It is applicable to the main materials (chemical liquids), and the overall framework is made of 304 stainless steel. We have rich experience in designing and constructing liquid batching systems. The number of materials can reach 20 types.
The liquid automatic weighing and batching system is a liquid automatic weighing and batching control system that integrates computer production process control and data management such as weighing and feeding, formula control, and discharging
